Bearer Authentication

This topic describes the steps for using Bearer Authentication.

  2 minute read

This authentication method uses Keycloak as its Identity Provider and an access token retrieved from Keycloak to authenticate to the server. For this authentication method, the Authentication header must use the Bearer authentication scheme name as defined in RFC-6750, followed by an access token string.

It is the responsibility of the requesting application to obtain a valid access token string from Keycloak.

Keycloak: Granting a user access to the ECC REST API

In Keycloak, the API user must have the “HighLevelAvailable” role enabled to access the ECC REST API. Several roles are optional for API users. The following table displays both required and optional roles.

Keycloak Role (Permission) Name Description Required?
HighLevelAvailable Grants access to the REST API Yes
CreateCollections Grants permission to user to create new collections No
ManageConfigurations Grants permission to the user to manage templates and configurations No
ManageJobs Grants permission to the user to manage existing jobs No

Keycloak: POST request for access token

One way to request an access token from a Keycloak server is to make an HTTPS POST request with specific x-www.form-urlencoded key value pairs in the request body. This section includes both an example of the endpoint and a table of the key value pairs required in the request body.

POST request example endpoint

POST {base-url}/auth/realms/{realm}/protocol/openid-connect/token

Note: To use this example, you must replace {base-url} with the HTTPS URL of your Keycloak server and {realm} with the name of the realm you configured in Keycloack.

Key Value pairs for POST request body

The following key value pairs must be included in the request body.

Key Value
grant_type password (the string “password” itself as a hard-coded value)
client_id The name of the client, in this case: “ECC”
client_secret The value of the authorization.server.secretId from the ECC server.conf file normally found at C:\Program Files\Nuix-ECC\Main\server.conf and which was generated and copied from Keycloak > Clients > ECC > Credentials > Secret
username The username of the user used to authenticate via Keycloak who wants to access the ECC REST API
password The password of the user to authenticate via Keycloak who wants access to the ECC REST API

Examples of using Bearer Tokens in Postman

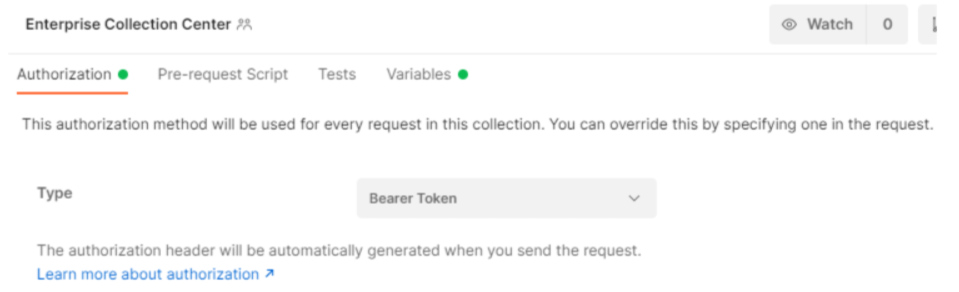

Using Postman to set the Authorization type to Bearer Token for ECC Rest API calls

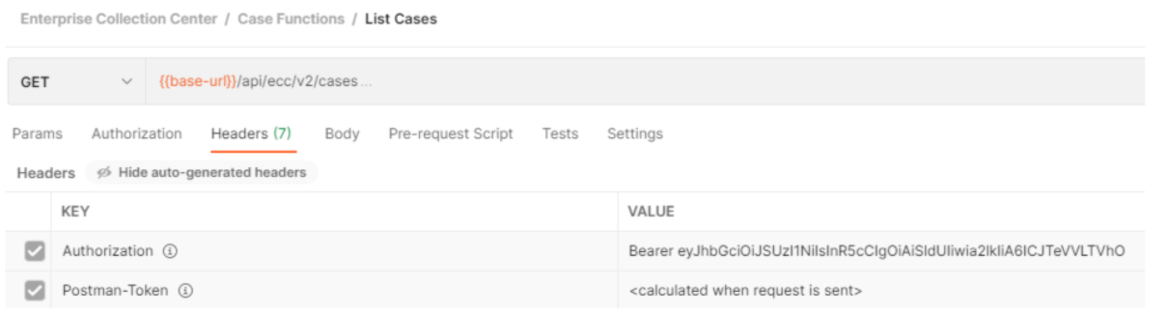

An example ECC Rest API Call using Postman Bearer token in Headers
